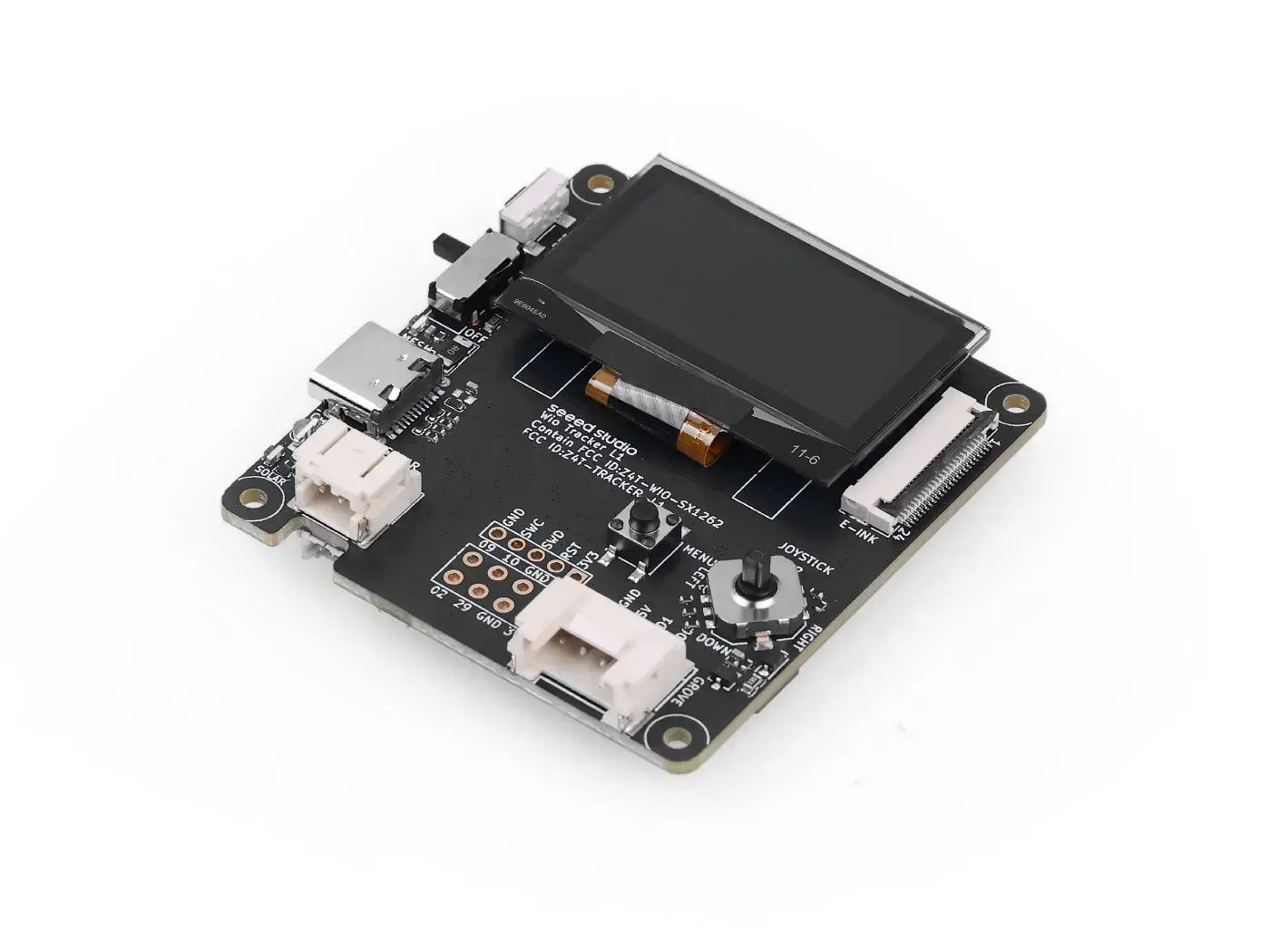

Wio Tracker L1

The Wio Tracker L1 Series is a compact, low-power Meshtastic device powered by a nRF52840nRF52840A Nordic microcontroller from the nRF52 family, used in devices such as the RAK WisBlock core modules. Provides Bluetooth LE 5.0 and very low power consumption. MCUMCU (Microcontroller Unit). The microcontroller that runs the firmware on a device. The hardware tables list the MCU for each supported board. for efficient performance. It features LoRaLoRaA low-power, long-range wireless communication technology used by Meshtastic devices to enable communication over distances of several kilometers without the need for cellular, Wi-Fi, or other traditional network infrastructures. communication (862–930 MHzMHz (Megahertz). A unit of frequency equal to one million hertz (cycles per second), used to specify the operating frequency of LoRa devices in the Meshtastic network, affecting range and data rate.) and the L76K GPSGPS (Global Positioning System). A satellite positioning system. A node with a GPS module determines its own location and can report that position to the mesh. module for accurate location data. The L1 includes a 1.3-inch OLEDOLED (Organic Light-Emitting Diode). A display type used on many Meshtastic devices. The OLED Type setting selects which panel driver the firmware uses. panel for easy status updates and live monitoring, making it simple to keep an eye on your node in real time.

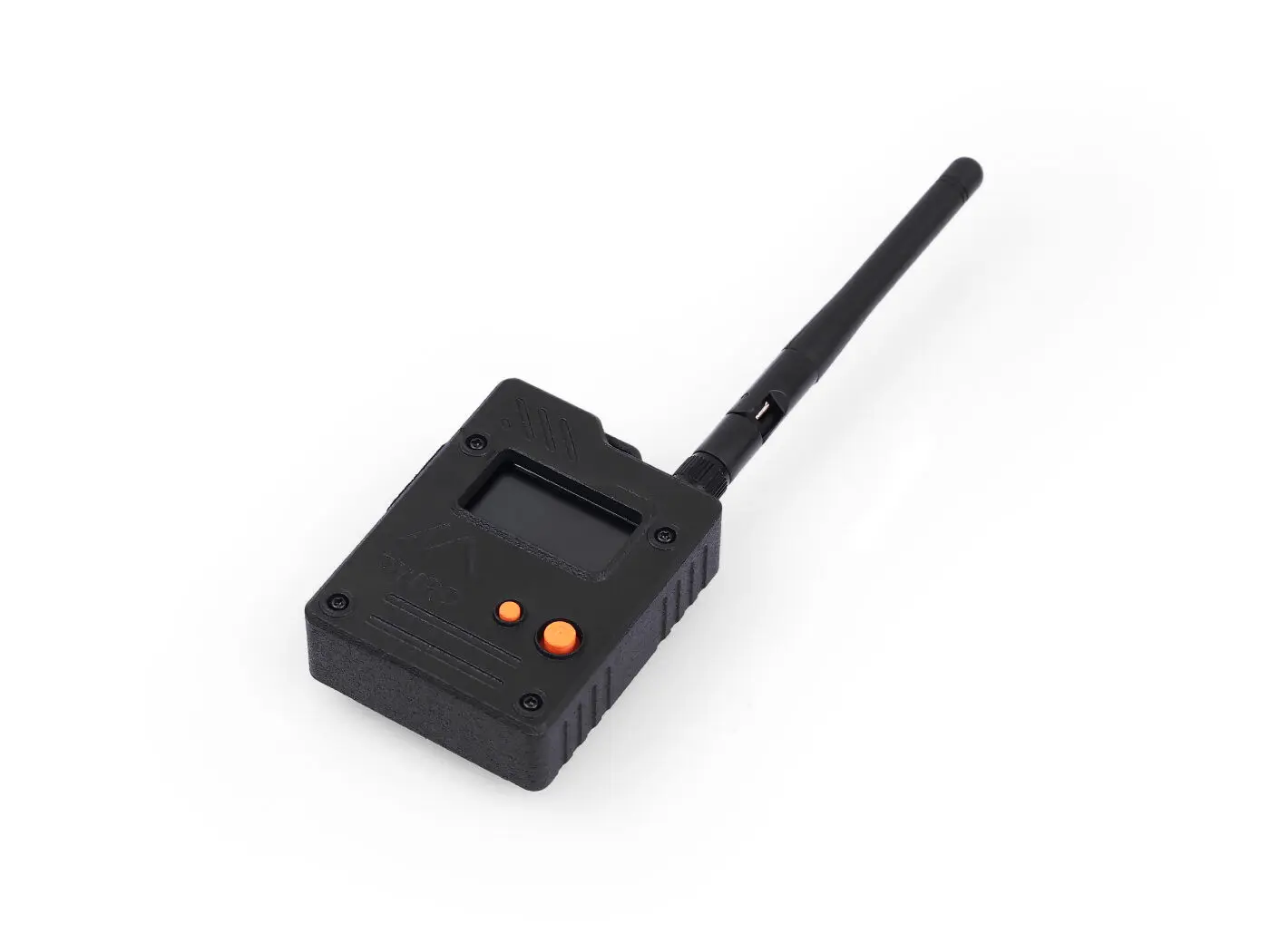

The L1 Series is also available in three other variants: the L1 Lite (no display), the L1 e-ink (with a 2.13-inch e-ink display), and the L1 Pro, which comes with a case and integrated battery for a complete, ready-to-use solution.

Specifications​

  • MCUMCU (Microcontroller Unit). The microcontroller that runs the firmware on a device. The hardware tables list the MCU for each supported board.
    • nRF52840nRF52840A Nordic microcontroller from the nRF52 family, used in devices such as the RAK WisBlock core modules. Provides Bluetooth LE 5.0 and very low power consumption.
      • Bluetooth BLEBLE (Bluetooth Low Energy). The default wireless connection between a node and a phone client. 5.0
      • Very low power consumption
  • LoRaLoRaA low-power, long-range wireless communication technology used by Meshtastic devices to enable communication over distances of several kilometers without the need for cellular, Wi-Fi, or other traditional network infrastructures. Transceiver:
    • SX1262SX1262A Semtech sub-GHz LoRa transceiver, used in most current Meshtastic hardware and recommended over the older SX127x series.
  • Frequency Options:
    • 862–930 MHzMHz (Megahertz). A unit of frequency equal to one million hertz (cycles per second), used to specify the operating frequency of LoRa devices in the Meshtastic network, affecting range and data rate.
  • Connectors:
    • USBUSB (Universal Serial Bus). The wired connection used to power a device, flash firmware onto it, and communicate with it over serial.-C
    • U.FLIPEXA miniature coaxial antenna connector found on many boards. The docs write it as U.FL/IPEX, using the two names interchangeably./IPEXIPEXA miniature coaxial antenna connector found on many boards. The docs write it as U.FL/IPEX, using the two names interchangeably. antenna connector for LoRaLoRaA low-power, long-range wireless communication technology used by Meshtastic devices to enable communication over distances of several kilometers without the need for cellular, Wi-Fi, or other traditional network infrastructures.
    • Battery Connector
    • Grove Connector
    • Solar Panel Connector
    • 30P OLEDOLED (Organic Light-Emitting Diode). A display type used on many Meshtastic devices. The OLED Type setting selects which panel driver the firmware uses. Display FPC Connector
    • 24P E-Ink Display FPC Connector

Features​

  • Triple power input: Type-C fast charging, solar, or 3.7V Li-ion battery
  • Accurate location tracking with L76K multi-GNSSGNSS (Global Navigation Satellite System). A multi-constellation satellite positioning receiver. Hardware listing GNSS support typically receives GPS, BeiDou, GLONASS and QZSS. module (GPSGPS (Global Positioning System). A satellite positioning system. A node with a GPS module determines its own location and can report that position to the mesh., BeiDou, GLONASS, QZSS)
  • Optional displays: 1.3-inch OLEDOLED (Organic Light-Emitting Diode). A display type used on many Meshtastic devices. The OLED Type setting selects which panel driver the firmware uses. or 2.13-inch E-Ink for flexibility
  • Grove connector and PTH headers for easy hardware expansion
  • SWDSWD (Serial Wire Debug). A two-pin debug and programming interface, used on STM32 devices to enter bootloader mode and flash firmware. interface for advanced development and debugging

Resources​

Seeed Wio Tracker L1 Seeed Wio Tracker L1 Pro
